Pellet Mill

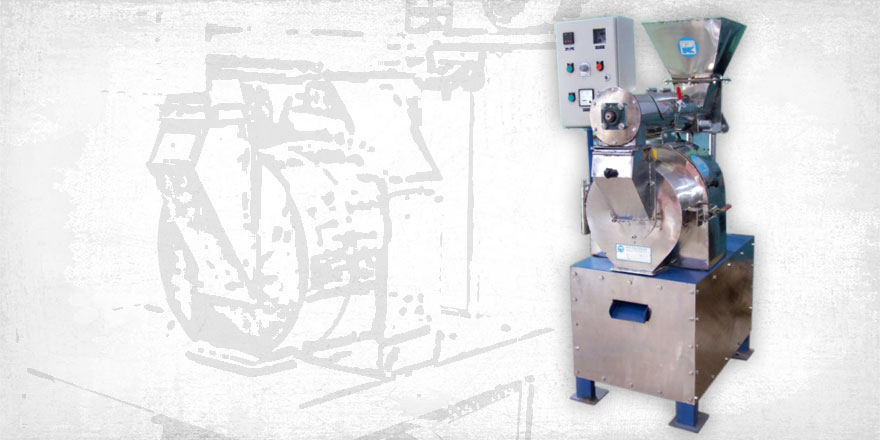

Replica is full stainless steel design.

We have developed Replica Pellet Mill for inhouse production of pellets in Research Institutes, which are engaging experimentation of life saving drugs on the animals.

Pellet Mill
Pellet Mill is required to palletise the feed after the steam cooking of the feed.
Pellets are produced by squeezing the steam-cooked mash feed between the rotating die and pressing rolls. Steam cooking is important so as to make the feed free from micro-organism / pathogens and making it fit for animal consumption. Dry steam is added to the feeder conditioner of the pellet mill and it adds lubrication to the mash feed and makes it perfect for pelleting. It also facilitates better life to the use of dies and rollers.

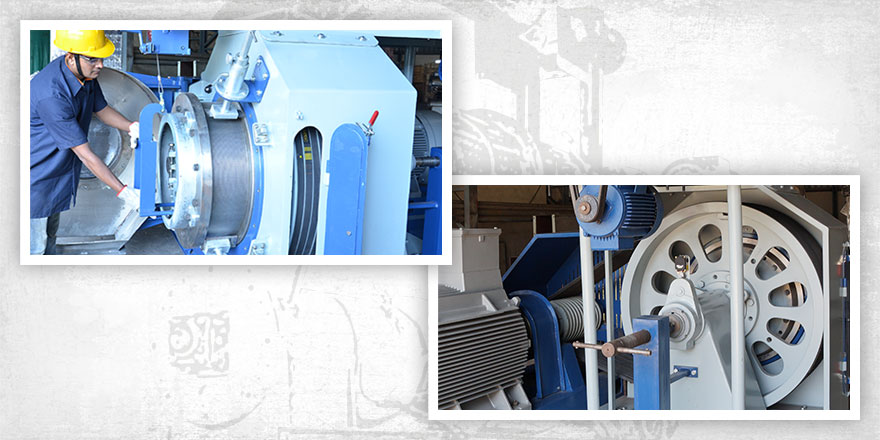

Inovo Pellet Mill
We are involved in manufaturing and supplying of Inovo Pellet Mill.
Features and Applications :

• Robustly engineered steel housing in welded construction for vibration less operation.
• Rotor assembly comprising main drive pulley and die holder.
• Stainless steel door and spout for long life.
• The die speed can be adapted to suit the particular properties of the material to be pelletized.
• Robust knife cutter assembly - Scale type for easy cutting & precise depth adjustment.
• Centralised lubrication for nonstop performance.

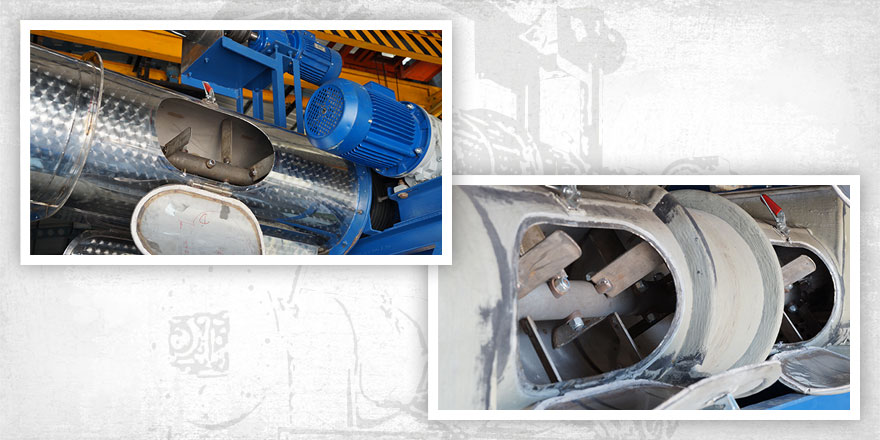

• Space saving - compact double rotor conditioner / differential dia. conditioner with adjustable Paddles for high reliable steam mixing and retention time.
• Gear type roll assembly for precise die-roll gap adjustment.
• D-CHROME™ & D-CARB® Die for High Finish gelatanized Pellet.

We also design pellet mills for pelleting of municipal waste (organic wastes), poultry manure, rice bran, Alfa-Alfa, red chill, bio-fuel & for research institutions engaged in conducting experiments of life saving drugs on animals.

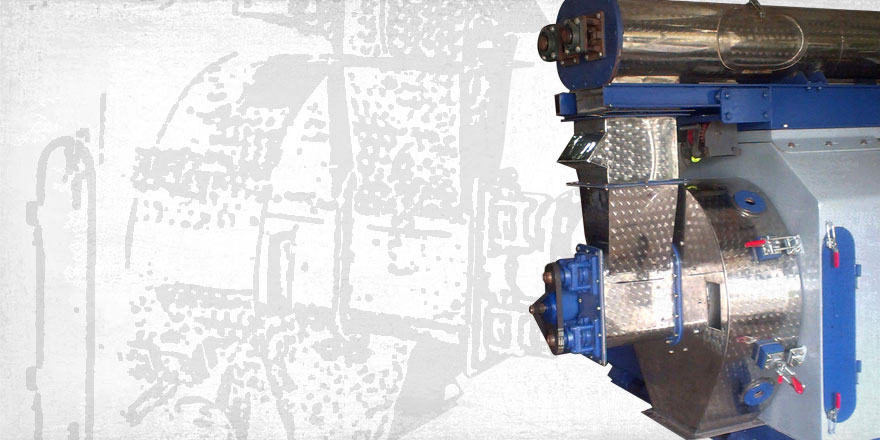

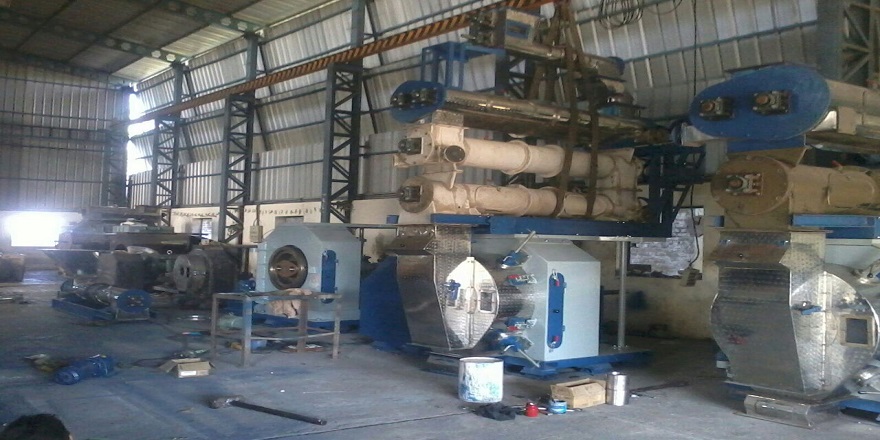

Bio-fuel Pellet Mill for wood / bio-mass having forced feeder available for difficult to flow materials.
Features and Applications :

• Robustly engineered steel housing in welded construction for vibration less operation.
• Rotor assembly comprising main drive pulley and die holder.
• Stainless steel door and spout for long life.
• The die speed can be adapted to suit the particular properties of the material to be pelletized.
• Robust knife cutter assembly - Scale type for easy cutting & precise depth adjustment.
• Centralised lubrication for nonstop performance.
• Space saving - compact double rotor conditioner / differential dia. conditioner with adjustable Paddles for high reliable steam mixing and retention time.
• Gear type roll assembly for precise die-roll gap adjustment.
• D-CHROME™ & D-CARB® Die for High Finish gelatanized Pellet.
